Life Cycle Assessment (LCA) serves as the primary scientific framework for quantifying the environmental footprints of metallurgical products. However, the outcomes of these assessments are fundamentally dictated by how system boundaries are defined—with Cradle-to-Gate and Cradle-to-Grave scopes being the most widely used approaches. This article further evaluates how the incorporation of Cradle-to-Cradle analysis and end-of-life recycling allocation alters resulting carbon and energy profiles. Finally, we review how global reporting standards, notably ISO 14040 and ISO 14044, govern these boundaries to ensure transparency, comparability, and scientific integrity across global supply chains.
Quantifying the environmental footprint of metallic materials, such as steel or aluminum, is vital for decarbonization efforts, since these materials form the structural backbone of industry, infrastructure, transportation, and clean energy technologies. It should be noted that an LCA for a given material can produce a wide range of values, as the results are highly dependent on the system boundaries selected. LCA system boundaries define which processes are included in the assessment, and shifting the scope from Cradle-to-Gate to Cradle-to-Grave can drastically alter the reported environmental performance of a material. For metals—which possess unique properties such as infinite recyclability without quality degradation—boundary selection dictates how environmental burdens and benefits are ultimately allocated.
An LCA with a Cradle-to-Gate scope is a partial assessment that maps the environmental impacts of a material from the point of ore extraction up to the factory gate—that is, before the material is transported to the consumer or processed into a final end-use component. In the context of primary metal production, this scope encompasses a series of high-energy, upstream industrial operations, including mining and extraction, followed by crushing, grinding, and flotation, upstream transportation for smelting or refining, and finally semi-fabrication (casting and rolling metal into shapes such as ingots, slabs, billets, or sheets). To account for further manufacturing, product usage, and disposal, a Cradle-to-Grave LCA must be used instead.
Structural metals can be melted and re-alloyed repeatedly while retaining their properties, making them well-suited to Cradle-to-Cradle analysis—essentially a Cradle-to-Grave assessment extended with an end-of-life recycling loop. If a metal item is recycled at its end-of-life, it prevents the extraction and smelting of an equivalent mass of primary (virgin) metal. Two primary modeling techniques are used to conduct this type of analysis:
On a Cradle-to-Gate basis, primary aluminum exhibits a substantially higher carbon footprint than carbon steel, driven by the intense electrical energy required for the electrolytic manufacturing process. However, when the boundary is expanded to a Cradle-to-Grave scope that includes a standard vehicle's operational lifespan, the outcome changes: the mass reduction achieved by integrating lightweight aluminum components yields substantial fuel savings. When the boundary is further extended to Cradle-to-Cradle using the avoided burden approach, the aluminum component benefits from a significant recycling credit. Because aluminum can be recovered and remelted at a fraction of its original primary energy cost, the net lifecycle carbon deficit relative to steel shrinks—or reverses completely.
To prevent arbitrary boundary selection and ensure reproducibility across industrial sectors, ISO 14040:2006 establishes the overarching framework for LCA, while ISO 14044:2006 provides the precise requirements and guidelines for conducting each phase of an LCA study. These standards mandate that the system boundary must be explicitly aligned with the stated goal and scope of the study. Any exclusion of lifecycle stages, inputs, or outputs must be transparently justified, and their collective omission must not significantly alter the final conclusions of the assessment.
Furthermore, ISO 14044 defines a strict allocation hierarchy for multi-product systems and recycling scenarios. It strongly prefers avoiding allocation altogether through system expansion—that is, broadening the boundary to include the cascading functions of secondary systems, or leveraging underlying physical relationships (such as mass or energy ratios)—before resorting to economic allocation methods.
Explore material and lifecycle data to understand carbon impacts across production and use scenarios.
To illustrate the practical significance of system boundary selection, consider the front-end panel of a car as a representative automotive component. A front-end panel must possess sufficient rigidity and durability to last over 200,000 km, a typical distance traveled by a car over its lifetime. If the LCA accounts for the entire chain of energy extraction and preparation needed for the component, its manufacturing and disposal, and—most importantly—its influence on fuel consumption during vehicle operation, the assessment is considered Cradle-to-Grave. By contrast, a Cradle-to-Gate analysis stops the assessment once manufacturing is complete.
For comparison purposes, four material options for the front-end panel were considered: steel, virgin aluminum, recycled aluminum, and a composite plastic material.
Table 1. Material Mass, Energy Inputs, and End-of-Life Pathways for Front-End Panel Alternatives
Table 1 provides the material mass and energy use for each process across the extraction, manufacturing, use, and end-of-life stages. The quantity of gasoline consumed during the vehicle use stage is calculated assuming an additional 0.04 mL of gasoline consumed per kg of vehicle mass carried per km traveled. At end-of-life, the steel and virgin aluminum front-end panels are assumed to be placed in landfills, while the composite panel is assumed to be incinerated at a household waste incineration plant. The recycled aluminum panel, by contrast, is assumed to be recycled once more after use, and therefore does not include an end-of-life disposal step.
Table 2. Life Cycle Inventory Results: Energy Consumption and Emissions by Material
No single material achieves the minimum values across all polluting substances and energy consumption metrics. The steel panel results in the highest CO₂, CO, and SO₂ air emissions, yet primary aluminum emits more nitrates than steel, and the recycled aluminum scenario emits over ten times more lead to air than the primary aluminum scenario. For many substances, the composite material emits less than steel but more than aluminum. Consequently, using emissions data alone makes it impossible to rank the materials by overall environmental impact.

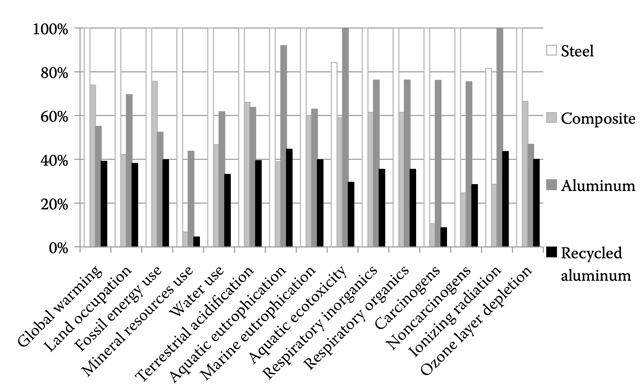

Figure 1. Midpoint Impact Category Comparison Across Front-End Panel Materials (as a Percentage of the Highest-Impact Material per Category)
Clearer conclusions can be drawn using proper LCA methods and midpoint indicators, as illustrated in Figure 1. When considering midpoint indicators, the impact of each material can be expressed as a percentage of the score of the highest-impact material for each indicator. The steel panel generates the highest impact across most midpoint categories, while the recycled aluminum scenario generally achieves the lowest scores.
The choice of system boundaries fundamentally shapes the conclusions drawn from a metal LCA. As demonstrated by the front-end panel case study, a material that appears environmentally favorable under a Cradle-to-Gate assessment may perform very differently once use-phase and end-of-life impacts are considered. Adherence to ISO 14040 and ISO 14044 standards ensures that boundary selection remains transparent, justified, and consistent, enabling meaningful comparisons across materials, products, and supply chains.
